Rubber 2 Inch Hydraulic Hose Crimping Machine Hose End Crimping Tool

Name: Rubber 2 Inch Hydraulic Hose Crimping Machine Hose End Crimping Tool
Brand: MENSION
Price: 1 USD

Best Rubber 2 Inch Hydraulic Hose Crimping Machine Hose End Crimping Tool wholesale

Brand Name : MENSION

Model Number : MS-NC130-I

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2.5inch

Die Sets : 13

Color : Blue

Max. Opening : 31mm

Crimping Force : 650T

Product Name : NC130-I Rubber Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3.75KW

Size : 650*550*1360mm

Weight : 310Kg

Contact Now

RUBBER HOSE CRIMPING MACHINE MS-NC130-I

DESCRIPTION

MS-NC130-I rubber hose crimping machine is famous for its high speed and convenient operation. It has the advanced cylinder as world famous finn power machines, has a long service life with a table performance.

ADVANTAGES

1. Famous NACHI hydraulic vlave, more stable;

2. CNC control, more intelligent;

3. Quick change for die sets, more efficient;

4. Italian electric ruler, high accuracy.

TECHNICAL DATA

Model	MS-NC130-I Rubber Hose Crimping Machine
Crimping Range	14 - 87 (mm)
Crimping Force	650 (T)
Hose Size	1/4 - 2.5 (inch)
Max. Opening	31 (mm)
Die Sets	13
Die Set Type	P32
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3.75 (KW)
Length	650 (mm)
Width	550 (mm)
Height	1360 (mm)
Weight	310 (KG)

Rubber 2 Inch Hydraulic Hose Crimping Machine Hose End Crimping Tool

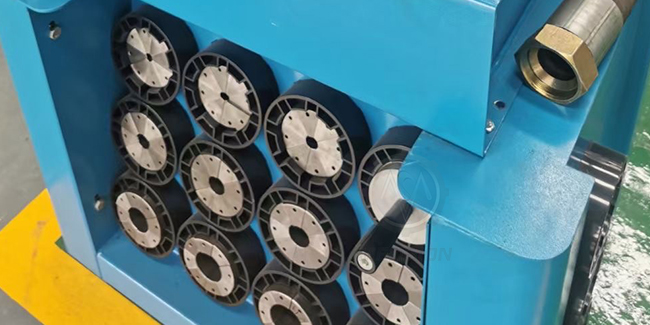

P32 HOSE CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8 mm	55
8*	8 - 10 mm	55
10*	10 - 12 mm	55
12*	12 - 14 mm	55
14	14 - 16 mm	55
16	16 - 19 mm	55
19	19 - 22 mm	55
22	22 - 26 mm	70
26	26 - 30 mm	70
30	30 - 34 mm	70
34	34 - 39 mm	75
39	39 - 45 mm	75
45	45 - 51 mm	90
51	51 - 57 mm	90
57	57 - 63 mm	100
63	63 - 69 mm	110
69	69 - 78 mm	110

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
